8 Dry-Contact Alarm Inputs Paging System

M-881 Alarm Paging

¡@

Application

  • Home Security
  • Warehouse/Malls
  • Casino/Hotels
  • Door/windows Monitor
  • Factory Machine Monitor
  • Car Security
  • Emergency situations
  • Boiling alarm paging



¡@

¡@

¡@

¡@

¡@

¡@







¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

The M-881 is designed in costs less and high paging performances. Which can monitor 8 alarm inputs from all kinds of external security sensors. Once the alarm is activated, it will automatically transmit the pre-programmed alphanumeric or numeric messages to the receiving pagers. The M-881 offers the radio dealers in new marketing opportunities to increase the alpha pager sales results. Also, it provides the economical alarm paging for on-site applications. The M-881 provides an USB 1.1/2.0 port used for system pre-programmed messages, such as pager capcode, data rate, message type and message.. etc

The M-881 is built-in 1-5 W VHF or UHF band transmitter.

¡@

                                                                               The screen of system set-up and programming



                                                          Specifications

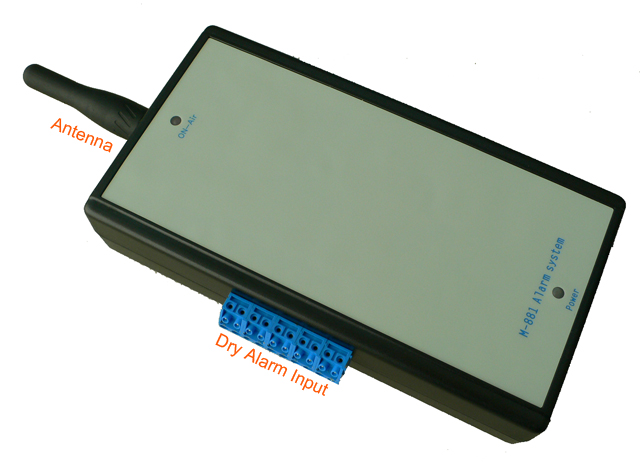

Model Number: M-881 Alarm Paging System
Frequency: 130-175MHz / 410-490MHz.
Frequency Oscillator type: Crystal controller
Paging format:  POCSAG
Baud rate: 512bps / 1200bps / 2400bps.
Message: Numeric and Alphanumeric (Max 40 Character)
RF output power: 0.1W - 5W  Adjustable
RF output Jack:: BNC Female for wipe antenna or outdoor antenna
Modulation: FSK ,
Deviation: 4.5Khz
Stability: ¡Ó10 ppm

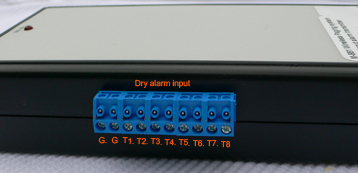

Pager Capacity: 8 dry alarm input
Operating Voltage: DC12V >2A
Programming: via USB with P/C
Power Consumption: Standby 12mA, On Air  750mA (at 5 watts)
Size: 189mm X 102mm X 42mm.
Weight:

260gm without AC adaptor

                                                                           Notes:  Specifications are subject to change without notice
