     Wireless linking product list.




Our products have been designed and manufactured to provide wireless solutions, to allow our customers to:

  • Lower their cost of doing business,
  • Increase their efficiency, and
  • Maximize their revenues.

 IoT solution

Item No.

Applications

unit Photos

Band Frequency

¡@

P-900

IoT Gateway

¡@

New Item !

¡@

It can capture a POCSAG message and send it to smart phone via Wi-Fi sub 1GHZ/2.4G

¡@

W-009

IoT Wireless Modules

Comparable to LoRa solution

New Item !

¡@

Sub 1GHz ISM Band Synthesized Transmitter with POCSAG Encoder + Message. transmitter.169MHz,315MHz,433MHz,868MHz,915MHz.IEEE 802.15.4g Systems 315-950-MHz

¡@

¡@

Wireless receiver modules

Item No.

Applications

unit Photos

Modulation Band Frequency    (in-MHz) In conjunction with:

RMB-500XS150

Very high sensitivity

Maps reveiver, Car alarm ,remote controller, [Narrow band]   FSK/FM 132~174 TXF-5500 or Data Services Provider

RMB-500XS450

Very high sensitivity

Maps receiver, Car alarm ,remote controller, 2 way pager, WLL. LAN.  [Narrow band]   FSK/FM 400~490 TXF2000     TXF-5500    TXF-060U   GPS Maps Service

RMB-500XS900

Very high sensitivity

Maps receiver, Car alarm ,remote controller, 2 way pager, WLL. LAN. [Narrow band]   FSK/FM 929~933 GPS Maps Data Service

Wireless Transmitter modules

Item No.

Applications

  unit Photos

Modulation/ RF Power Frequency (in-MHz) In conjunction with:

TXF-1500

Low cost

Data telemetry, Paging, Remote Transmitter, Repeater, [Narrow  band]    FM/FSK 0.5/1/1.5W switchable

¡@

420~470

868~935

¡@

¡@

RMB500XS450 Pagers

¡@

TXF-5500

High Power

Data telemetry, Paging, Remote Transmitter, Repeater,[Narrow band] FM/FSK 1~5W 130~174

400~520

RMB500XS150

RMB500XS450

 Pagers

TX-115L

Synthesized

High Power

Data telemetry, Paging, Remote Transmitter, Repeater,[Narrow band] FSK/OOK 1~5W 315/434

868/915

RMB500XS150

RMB500XS450

 Pagers

Wireless Paging network messaging equipment

Item No.

Main Functions

unit Photos

Formats Frequency

Y1707 V1

POCSAG Telemetry

6 output and 46 user function for remote controller, numeric/alphanumeric message data transmission via RS-232 to P/C or  LED display panels

POCSAG

Alpha/Numeric

132~174MHz

279~286MHz

420~490MHz

800~933MHz

W1710 Airport

136MHz--960MHz

Synthesized

 POCSAG Telemetry

¡@

136-960MHz POCSAG Receiver with RS-232 RS-422 RS-485 data output, 2 Relay output, & POCSAG Encoder Transmitter for remote control data messaging applications.

POCSAG

2 way

Synthesized

¡@

136-182MHz

205-240MHz

273-320MHz

410~480MHz

820~960MHz

PE800X

POCSAG Encoder

POCSAG Encoder with 8 alarm inputs,  programming by USB, for alarm system, 2 way radio application

POCSAG

Alpha/Numeric

Encoder only

Y1727RY2

POCSAG Telemetry

Built-in 2 stand alone relays for dry contact output, and 46 user function, Max 10A per each relay contacts.

POCSAG

Alpha/Numeric

¡@

132~174MHz

279~286MHz

420~490MHz

800~933MHz

Ethernet / RS-232 Paging Transmitter, Nurse call, Kitchen call and Waiters call system.

Item No.

Main Functions

Photos

Message

TX Frequency / RF Power Output

PE-800T SKD

POCSAG Transmitter

  • POCSAG system
  • 8 or 16 inputs
  • 4 mW  RF power
  • USB programmable
  • Easy to install
  • Long distance
  • 46 X 34 X 14mm
  POCSAG

Numeric and Alphanumeric

410-490MHz

4mW

M-810L SKD

POCSAG

Synthesized Transmitter

  • PLL Frequency

  • POCSAG system

  • 4 inputs

  • 12 mW

  • USB programmable

  • Easy to install

  • Long distance

  • 50 X 37 X 7mm

POCSAG

Numeric and Alphanumeric

410-490MHz

868-915MHz

10mW

WD2

Door alarm

POCSAG

Synthesized Transmitter

  • PLL Frequency

  • POCSAG system

  • Direct to pagers

  • Antenna inside

  • USB programmable

  • Easy to install

  • Door/Window

  • Magnet reed switch

  • LED indicate

  • Power On/Off SW

  • Long distance

  • very long battery life

  • Use CR2032 battery

  • 100 X 37 X 10mm

POCSAG

Numeric and Alphanumeric

315-434MHz

868-915MHz

10mW

M-810L

POCSAG

Synthesized Transmitter

  • PLL Frequency

  • On Table or wall

  • Direct to pagers

  • Antenna inside

  • USB programmable

  • Easy to install

  • Long distance

  • very long battery life

  • 100 X 70 X 25mm

POCSAG

Numeric and Alphanumeric

315-434MHz

868-915MHz

10mW

M-820L

Pendant

Synthesized

POCSAG Transmitter

  • POCSAG system
  • USB programmable
  • Mini size portable
  • very long battery life
  • Low battery aleart
  • Long distance
  • Internal  Antenna
Numeric and Alphanumeric pagers

410-490MHz

868-915MHz

10mW

M-840L

Water Resistance

Pendant

Synthesized

POCSAG Transmitter

  • POCSAG system
  • USB programmable
  • Mini size portable
  • very long battery life
  • Low battery aleart
  • Long distance
  • Internal  Antenna
  • Water resistance
Numeric and Alphanumeric pagers

410-490MHz

868-915MHz

10mW

M-838 SKD

POCSAG Transmitter

  • POCSAG system

  • 8 inputs

  • 10 mW or 35 mW

  • USB programmable

  • Low battery warning  indication

  • Easy to install

  • Long distance

  • 46 X 46 X 9mm

POCSAG Numeric and Alphanumeric

410-490MHz

10 or 35mW

M-838Art

Restaurant Service Paging

  • Art form of Acrylic
  • POCSAG pager's
  • USB programmable
  • Built-in bills holder
  • Long battery life
  • Long distance
  • Battery low indicate
Numeric and Alphanumeric pagers

410-490MHz

10mW/35mW

EM-898

PC Base Paging Transmitter

¡@

Windows XP, Win7,Win8

  • Long distance
  • Low cost
  • Easy to install
  • Instant paging
  • Quick reaction
  • USB port application
Numeric and Alphanumeric pagers

410-490MHz

868-915MHz

10~150mW

M-909X

9 Buttons Paging synthesized Transmitter

  • POCSAG system
  • USB programmable
  • Easy installation
  • Easy operation
  • Long distance
  • VHF/UHF 1-7W
  • 9 Key
  • USB Programming
  • Frequency Synthesized

¡@

Numeric and Alphanumeric pagers

400-470MHz 1-7W

868-915MHz -1.5W

M-916X

16 Key Paging Synthesized

Transmitter

  • POCSAG system
  • USB programmable
  • Easy installation
  • Easy operation
  • Long distance
  • UHF 1- 7W
  • 16 Key
  • Frequency Synthesized

¡@

Numeric and Alphanumeric pagers

400-470MHz 1-7W

868-915MHz -1.5W

¡@

NP-14

NetPage

RS-232

Ethernet

TCP/IP

WiFi

POCSAG

Encoder with

Syhthesized

Transmitter

¡@
  • POCSAG system
  • RJ-45 connect
  • RS-232 connect
  • USB programmable
  • 8 dry alarm contact
  • Easy installation
  • Easy operation
  • Long distance
  • 400-900MHz 5W

¡@

Message pager

400-470MHz 1-7W

860-933MHz 1-5W

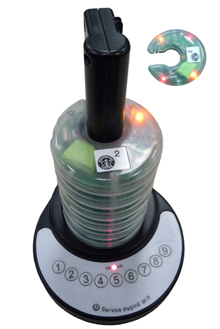

W-9

9 Buttons Paging Transmitter

  • POCSAG system
  • P/C programmable
  • Easy installation
  • Easy operation
  • Long distance
  • UHF band 1W
  • 9 Keys
  • Stackable pager battery recharging

¡@

Beeps, vibration, and LEDs

410-490MHz 1W

RPT-1600

Data Repeater

  • Same or Duplex Frequency RX/TX

  • For FSK and 2 level data application

  • Short delay time

Data Transfer

140-490MHz 1-5W

868MHz 0.01-1W

¡@

Pagers

¡@ ¡@ ¡@ oscillator controller

Frequency Range

Item No.

Main Functions

unit Photos

Synthesizer /Crystal VHF UHF UHF hi-band

P-9

Service pager

Beeps Vibration & 3 Color LEDs Crystal

132-174MHz

410-490MHz

868-933MHz

M100P2L

Data message

2 Lines Alphanumeric, Vibrate, Alarm Crystal

132-174MHz

410-490MHz

868-933MHz

M4LL

Text receiver

4 Lines Alphanumeric, Vibrate, Alarm, PLL Synthesized

¡@

410-490MHz

868-933MHz

¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@



¡@
