Wireless Call System |

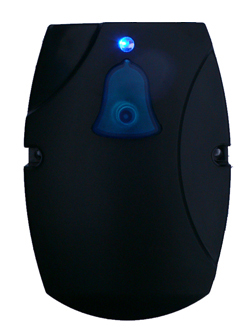

M-810X Service call |
|
Calling for service Just Press the Bell button |
||

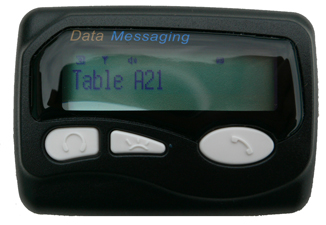

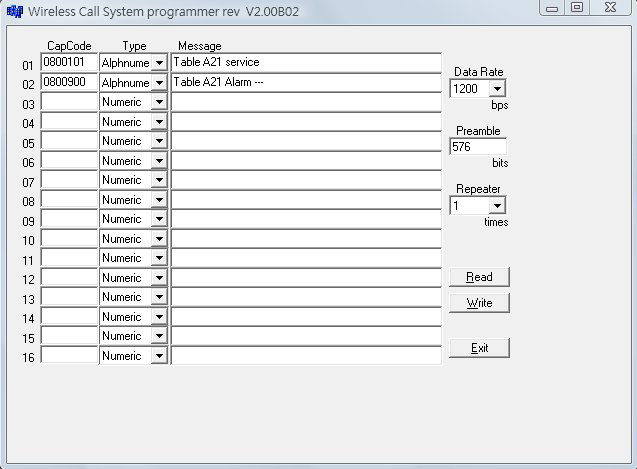

¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ The M-810X service call system is designed to directly page waiters with a Bell button depressing. There are no wire connections necessary. And the installation is easy and simple for the operations. Calling waiters or Nurse for helps? Simply press the Bell button right of away. Also, the M-810X has various of the paging features which can be set easily by the PC programming. ¡@ It is easy to program and set up the desired pager capcode, data rate, repeat time etc functions. ¡@

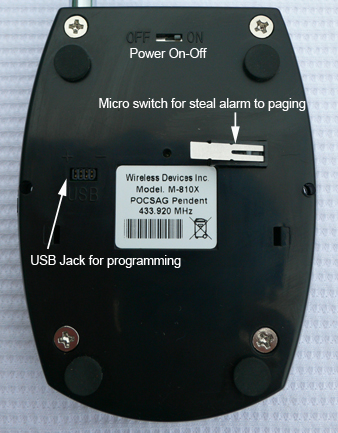

¡@ Unique Steal Alarm Option Feature The new M-810X is specially designed to add the sensor micro switch located at the bottom side. With the pre-programmed option alarm message such ¡§ Table 2 M-810X Unit is off the table¡¨ , It will be useful to prevent the steal and lost unit situations under the public area applications.. ¡@
¡@ ¡@ |
Specifications of M-810X
| Paging format: | POCSAG |
| Baud rate: | 512bps / 1200bps / 2400bps. |
| Message: | Numeric and Alphanumeric (Max 40 Characters). |
| Message data: | Numeric or Alphanumeric. |
| RF output | UHF Band from 410 to 490MHz 10 mW (+10.0 db). |
| Modulation: | FSK ,NRZ. |
| Deviation: | 4.5Khz. |
| Stability: | ¡Ó10 ppm. |
| Pager Capacity: | 1 Button for service call and 1 micro switch for steal alarm paging (option 01). |
| Operating Voltage: | 9 V Alkaline battery. |
| Programming: | via USB with P/C. |
| Battery life | about half year ( 10 Times per day). |
| Size: | 100mm X 70mm X 25mm. |
| Housing Color: |
Black (white or other
desired colors in minimum 500PCs per order).
|
| Model Weight: |
115gs (with battery). |
|
Notes: Specifications are subject to change without notice |
