PC Base Paging system

EM-898

Small wireless paging system on your office! You can page your staffs from your NB or P/C Also, you can get all incoming e-mail notices immediately while you are leave with your table !!

@

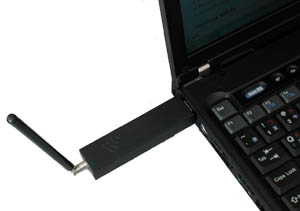

The EM-898 local paging device is designed to directly and instantly page the e-mail subscriber anywhere once the P/C or Notebook receive an e-mail messages. Also you can take it as your owned office paging system

Also we can offer the VB driver code for customer's own software applications.



Function

  • Low cost and Long distance
  • POCSAG standard format
  • Real time transmission
  • On-site Paging system

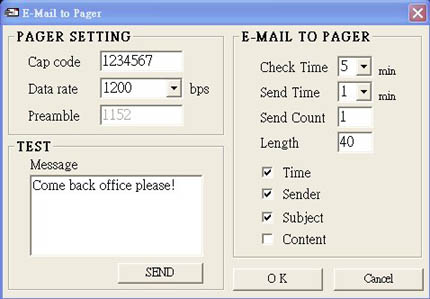

  • e-Mail to pager

     Operation with by







                              for Windows 98,and XP applications.

@

@

@

@

@

@

@

@

@



@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

@

                                                                 Specifications

Item NO.  EM-898-10/50 EM-898-100 EM-898-150
Frequency: One Channel from 410MHz to 490MHz by crystals controlled.
Frequency Stability:: 10 ppm at 25ºC. 10 ppm at 25ºC. 10 ppm at 25ºC.
Paging format:  POCSAG
Baud rate: 512bps / 1200bps / 2400bps.
Message data: Numeric or alpha-numeric, max 40 characters per each paging
RF output 10~50mW  100mW 150mW
Modulation: FSK ,
Deviation: 4.5Khz
Operation Temp: -20ºC ~ +70ºC.
Pager Capacity: from 8 to 2097151 Pager Capcode
Operating Voltage: +5V from USB port
Coverage distance about 8,000 square Meter about 50,000 square Meter about 85,000 square Meter
Size of Housing:: 90mm X 23mm X 16mm 90mm X 23mm X 16mm 90mm X 23mm X 16mm
Model Weight:

30gs

32gs 38gs
                                                                         Notes:  Specifications are subject to change without notice
